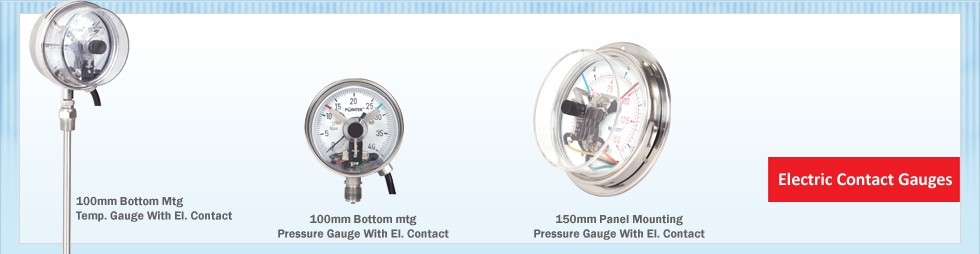

| CONSTRUCTION FEATURES |
 |
| Dial Size |
: |
100mm &150mm |
| Accuracy |
: |
±1% of full scale |
| Case & Bezel (IP-65) |
: |
SS 304 Snap Action Bayonet type |
| Movement |
: |
SS 304 |
| Pressure Element |
: |
SS 316 ( ≤ 70 bar 'C' Type / > 70 bar Coil Type ) |
| Socket |
: |
SS 304 / SS 316 |
| Dial |
: |
Aluminum white painted with
270 degree black scale marking. |
| Pointer |
: |
Al. / Brass, Zero adjustment /
Micro Zero Adjustment Pointer. |
| Window |
: |
Acrylic glass. |
| Blow Out Protection |
: |
Back side at 0.6 Kg/cm2 |
| Over Load Protection |
: |
125% of f.s.d. for ≤ 150 Kg/cm2
115% of f.s.d. for > 150 Kg/cm2 |
| Joints |
: |
Argon arc welded. |
| Mounting |
: |
Stem (Bottom), Panel Mounting, Flush Panel ( Bracket Type). |
| Scale Range |
: |
Vacuum & Pressure up to 700 kg/cm2. |
| Contact Details |
: |
380V AC/DC, 50 V A / 30 watts, Current not exceed 1 Amp. |
| Contact Type |
: |
Magnetic Single Contact ( 1NOs, 1NC )
Double ( 1 NO+NC, 1 NC+1NO, 2 NO, 2 NC) |
| |
|
|
|
| OPTIONAL FEATURES |
|
 |
Diaphragm Sealed with Electrical Contact available on request |
|
LPD with Electrical Contact available on request. |
|
| |
| APPLICATION |
|
Control & Regulation of industrial process.
Monitoring of plants and switching of electric circuit.
Power plants, Chemical & petrochemical industries, pump, motor, turbine etc…
|
|
