| CONSTRUCTION FEATURES |
 |
| Dial Size |
: |

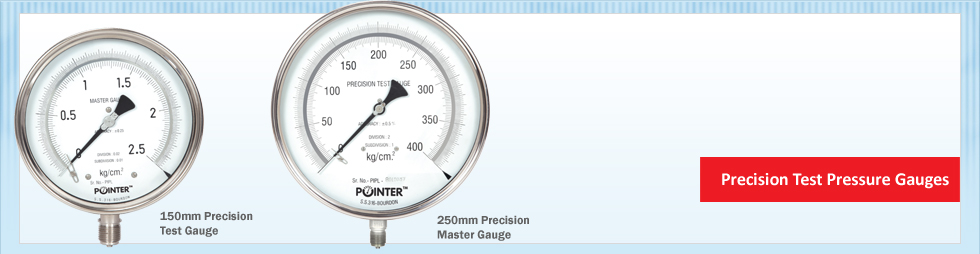

150mm & 250mm |
| Accuracy |
: |
±0.25% & ± 0.5% of full scale |
| Case & Bezel (IP-65) |
: |
SS 304 Snap Action Bayonet type |
| Movement |
: |
SS 316, High Precision with Bi-Metal Link
for Temperature Compensation |
| Pressure Element |
: |
SS 316 ( ≤ 70 bar 'C' Type / > 70 bar Coil Type ).
|
| Socket |
: |
SS 316 |
| Dial |
: |
Aluminum white painted with
270 degree black scale marking with mirror scale |
| Pointer |
: |
Al. Knife edge Micro zero adjustment type |
| Window |
: |
Toughened / Safety glass |
| Blow Out Protection |
: |
Back side at 0.6 Kg/cm2 |
| Joints |
: |
Argon arc welded. |
| Mounting |
: |
Stem (Bottom), Surface, Panel Mounting,
Flush Panel ( Bracket Type) |
| Connection |
: |
½" BSP / NPT. |
| Scale Range |
: |
Vacuum, Compound & Pressure up to 1000 kg/cm2 |
| Least Count |
: |
As per standard chart accuracy ±0.25% & ±0.5%. |
