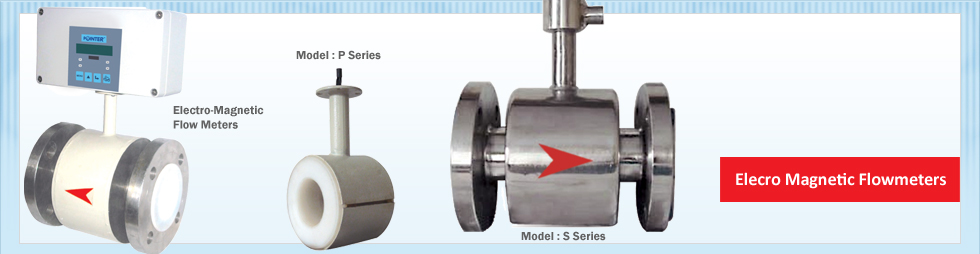

“POINTER” full bore flow meter is a cost effective flow meter for conductive liquids such as Raw Water, Chilled water, effluents, Potable water and industrial chemicals. Using time proven electromagnetic flow metering principle, “POINTER” flow meters are available for pipes from ½ “ NB to 6” NB. Since there are no moving parts, the flow meter gives years of maintenance free service. It’s performance is independent of temperature, pressure, density and viscosity of medium. The flow meter is obstruction less and hence the pressure drop is almost negligible.

“POINTER” has all the features required in field mountable metering equipment. These include - weather proof / flame proof enclosure, RS485 communication option , with 4 to 20 mA isolated Current output for Flow signal transmission option for process control. The converter is available as field mounted-IP65 protection category. An optional batching controller also available on request.

CONSTRUCTION FEATURES

	High Accuracy Flow metering
	Optional Digital Transmission
	Isolated 4 to 20 mA current output
	IP 65 Field / Wall mounted Enclosure
	2 Line Alpha numeric back lit display
	Flange / sandwich type mounting
	Easy maintenance as no moving part.
	Operates over wide range of Pressure and Temperature.
	Low cost against highest quality.

OPTIONAL FEATURES

This Flowmeters find varied applications where the flowing medium is difficult to handle. Major advantage of these flowmeters are : zero pressure drop, No moving part and highest accuracy level at most affordable cost. Some of the major application can be described below:


	Effluent Treatment plant		Sugar industries and distilleries
	Sewage Treatment plant.		Steel and Aluminums
	Water supply Schemes		Chemical / Pharmaceuticals
	Pulp and Papers		Food and Drugs.

TYPICAL FLOW RATE TABLE
Pipe – Size (NB)	15(½”)	25 (1”)	40 (1 ½ “)	50 (2”)	80 (3”)	100(4”)	150 (6”)
At Velocity 0.5 m/sec in LPM	~5	~15	~37	~60	~150	~235	~530
At Velocity 5 m/sec in LPM	~50	~150	~370	~600	~1500	~2350	~5300
